Kytun Catchment Cavity Tray - Blockwork

The purpose of a cavity tray is to prevent water ingress into a building at an abutment where blockwork rises above the roof slope or flat roof area.

A catchment tray is used to catch any water which has cascaded down from the apex and intermediate trays along a pitched roof abutment and safely direct it back out, via weepholes, to the roof covering.

An AT100 (available separately) is required with each blockwork catchment cavity tray.

Add to quote

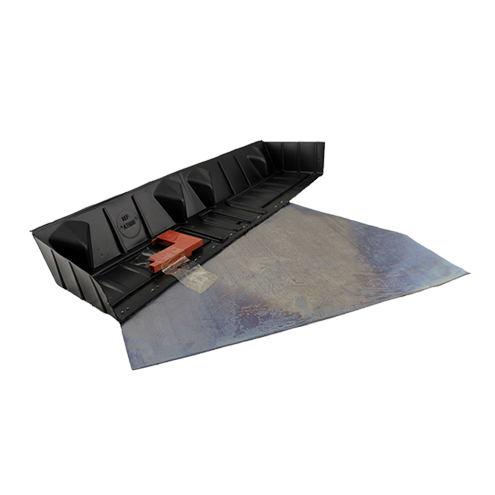

Right Catchment Tray for Blockwork

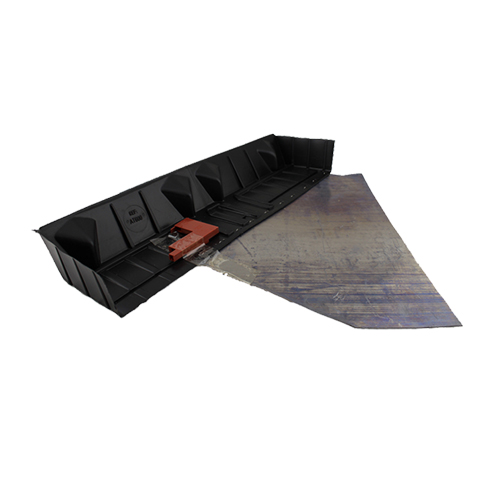

Left Catchment Tray for Blockwork
Right Catchment Tray for Blockwork
Left Catchment Tray for Blockwork
  • A catchment tray is used to catch any water which has cascaded down from the apex and intermediate trays.
  • The catchment tray safely expels this water via weepholes onto the roof covering.
  • The product is available with pitch dedicated integral lead flashings in 5 degree increments from 25-50 degrees.
  • Specials available on request.
  • Suitable for course heights of 150mm or 225mm.

For the Home Owner

  • Proven system to ensure no water penetration at abutments.
  • Factory produced product.

For the Roofer

  • Standard product installation.
  • Full technical support available.
  • Installation guide available.
  • Pitch dedicated, integral lead flashings reduce waste and save time during installation.

For the Architect / Professional

  • Full technical service available.
  • Take off service available.
  • Proven, quality system.


Datasheets

Discuss your project needs with us today

We are on hand to assist you with any queries you may have on the best options for your project. Alternatively, if you know what you are looking for from our range and need to locate you nearest supplier, use our stockist finder feature below.
