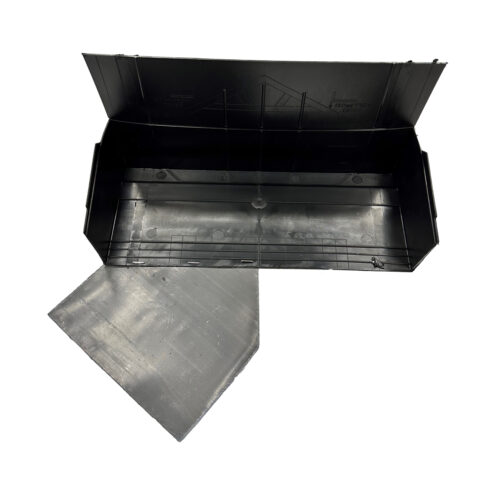

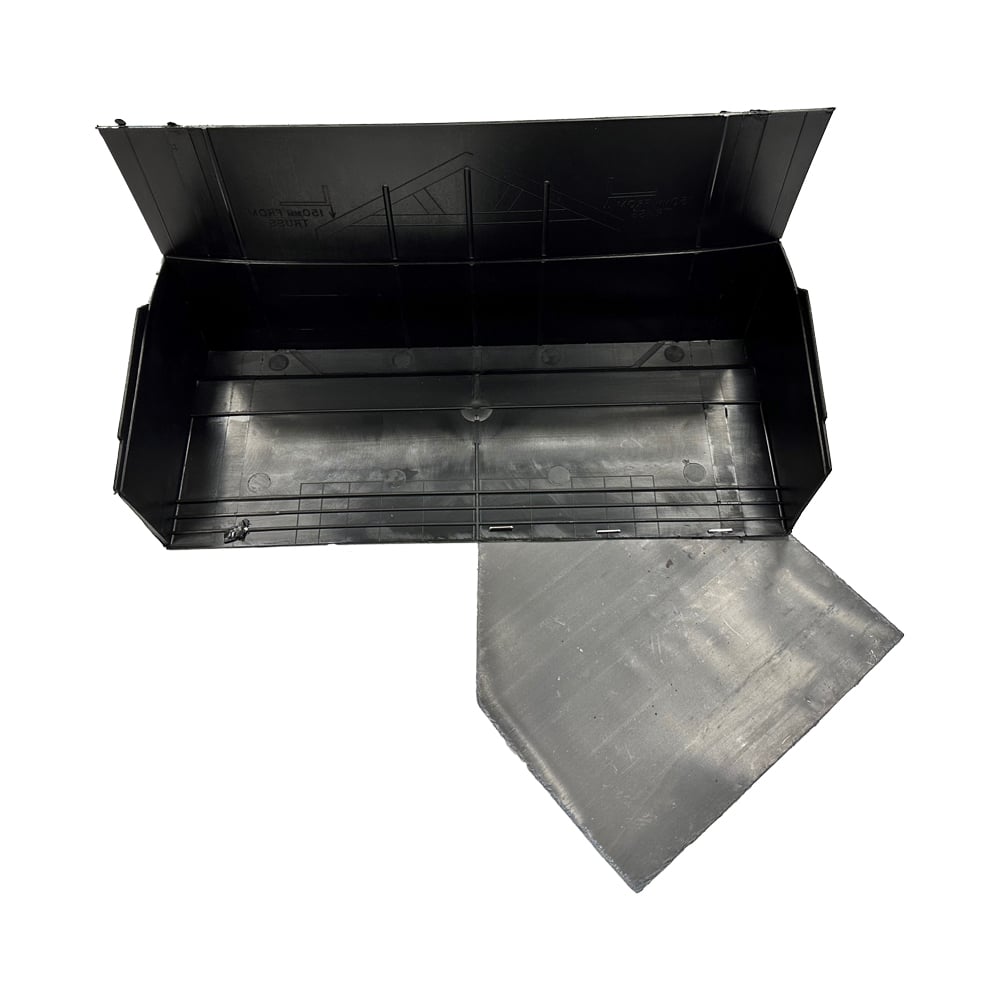

Kytun Catchment Cavity Tray - Brickwork

The purpose of stepped cavity trays is to stop water ingress into a building at an abutment where brickwork rises above the adjacent pitched roof abutment.

A Catchment Tray is located at the bottom end of a series of stepped Intermediate cavity trays. Any water in the cavity will cascade down from tray to tray until it reaches the Catchment Tray where it is diverted outside to the roof covering via a weephole ventilator

Add to quote
  • A catchment tray is used to catch any water which has cascaded down from the apex and intermediate trays.
  • The catchment tray diverts any water back outside via a weephole ventilator.
  • Brickwork catchment cavity tray range with integral lead flashings are available in 5 degree increments from 25-50 degrees.
  • Specials available on request.
  • Suitable for 75mm course height masonry.

For the Home Owner

  • Proven system to ensure no water penetration at abutments.
  • Factory produced product.

For the Roofer

  • Standard product installation.
  • Full technical support available.
  • Installation guide available.
  • Pitch dedicated, integral lead flashings reduce waste and save time during installation.

For the Architect / Professional

  • Full technical service available.
  • Take off service available.
  • Proven, quality system.


Discuss your project needs with us today

We are on hand to assist you with any queries you may have on the best options for your project. Alternatively, if you know what you are looking for from our range and need to locate you nearest supplier, use our stockist finder feature below.
