Kytun Lead Chimney Tray

Kytun Lead Chimney Trays are designed to prevent water penetration into the building through the chimney stack. Kytun Lead Chimney Trays are fitted during the construction of the chimney.

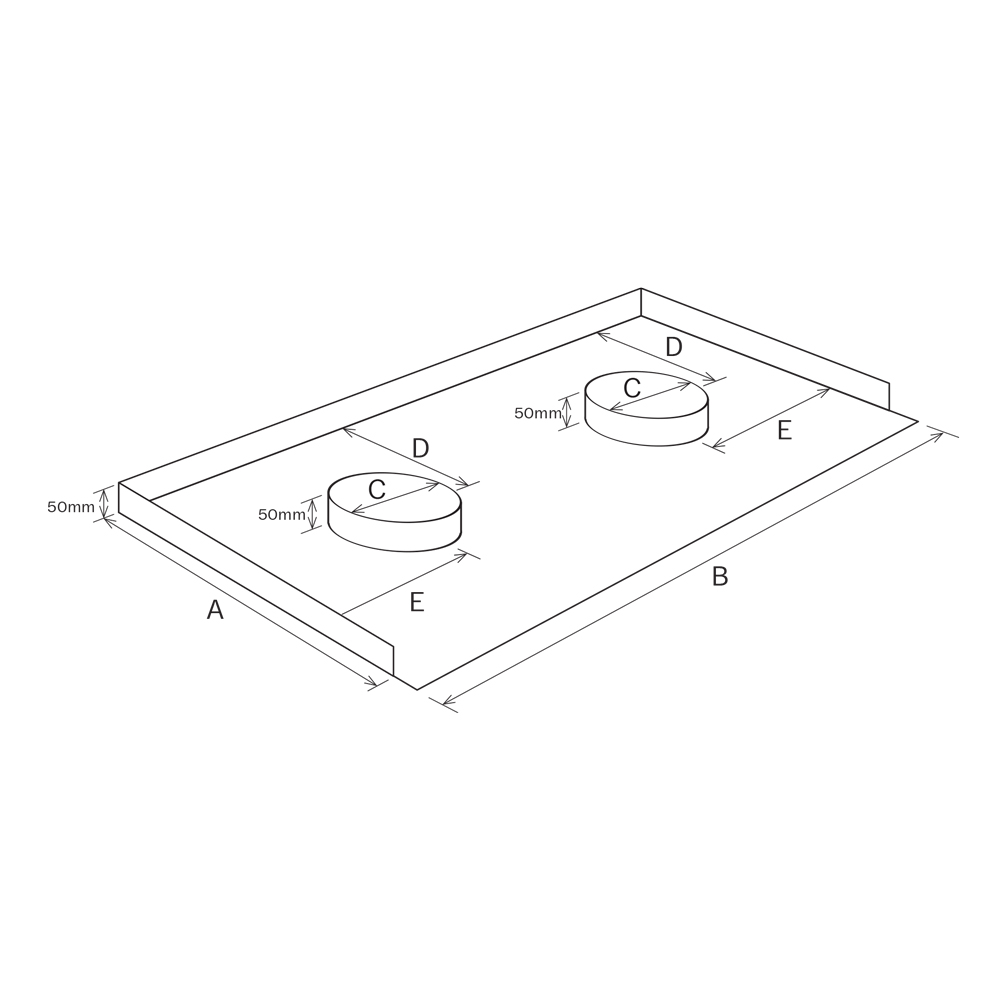

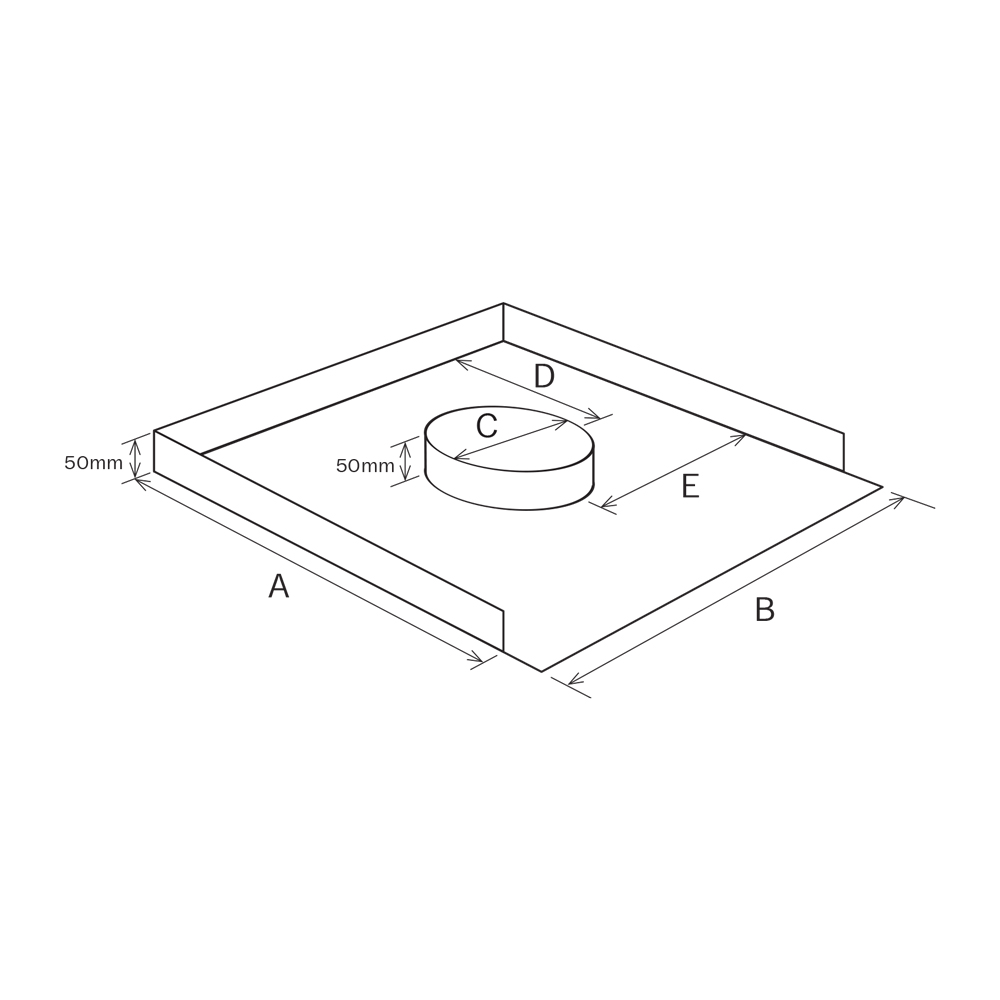

Kytun Lead Chimney Trays come in single and double size’s. If you can’t see the Tray you require please contact us with your requirements and we will quickly get back to you with a bespoke solution to your needs.

We can produce any size.

For brick or block chimney stacks.
  • Regardless of the location of the chimney on the roof, the lead tray should be installed minimum of 150mm above the lowest point of intersection with the roof.
  • The tray should be bedded in a thin layer of mortar. The front section of tray is then folded down over block/brickwork to lap onto the front apron flashing.
  • We would recommend that the Lead Chimney Tray is coated with bitumen emulsion prior to installation.
  • Designed to collect water that penetrates the chimney.
  • Suitable for new build or refurbishment work.
  • Made from code 4, a material with proven characteristics to perform at the highest level in one of the most vulnerable parts of the building.

For the Home Owner

  • Robust detail ensuring no water ingress to the roof space.
  • Bespoke design to suit every projects unique requirements.
  • Complies with current Building Regulation requirements.

For the Roofer

  • Easily incorporated into blockwork.
  • Full technical support available

For the Architect / Professional

  • Robust detailing at vulnerable area in building.
  • Knowledge through previous use that this detailing will work
  • Full technical service available.

Discuss your project needs with us today

We are on hand to assist you with any queries you may have on the best options for your project. Alternatively, if you know what you are looking for from our range and need to locate you nearest supplier, use our stockist finder feature below.
