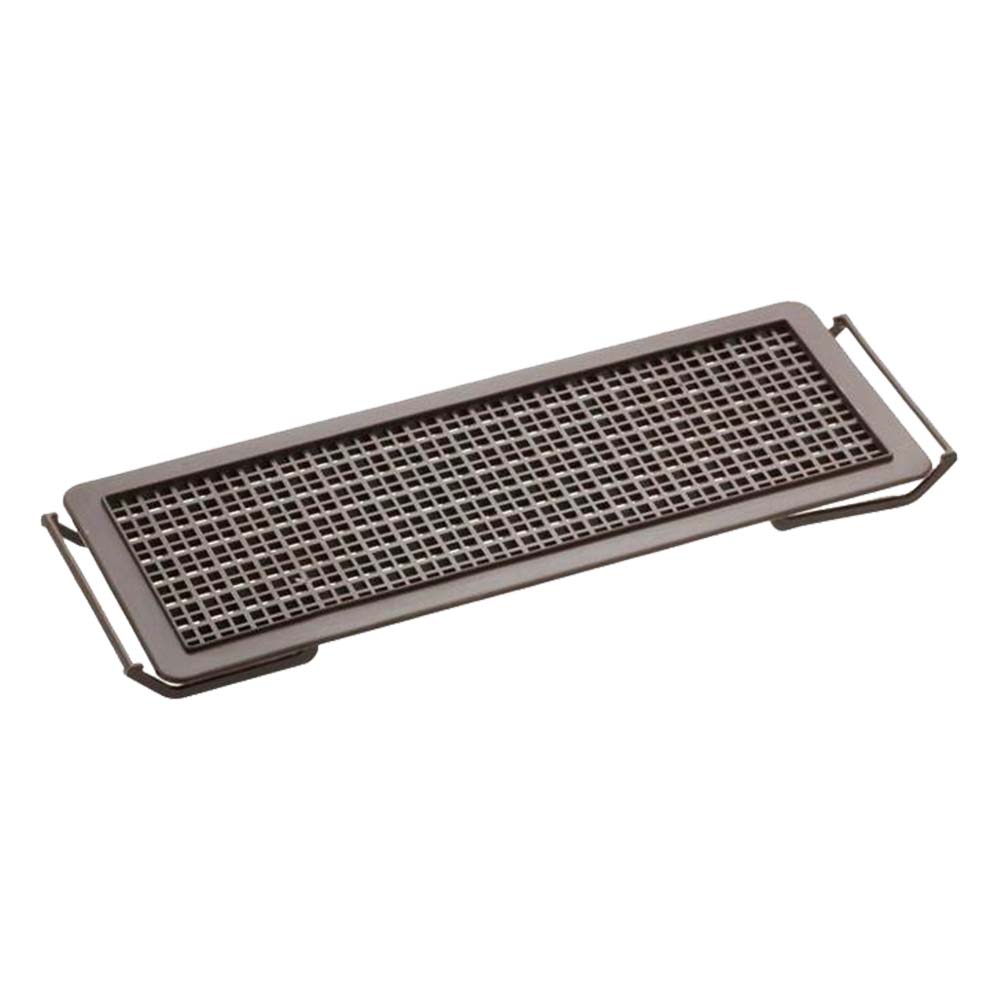

Spring Wing Soffit Vent

Spring-Wing Soffit Ventilators are for installation at eaves with a projecting soffit, and must always be used with RV Rafter Ventilators to provide a continuous ventilation path from the roof void to the outside without impairing the weatherproof function of the structure

SV120 Soffit Ventilators are designed for easy installation in existing soffits, but can also be used in new work.

  • Compatible with all common soffit boards
  • Provides guaranteed actual ventilation opening of 10 000mm²/m at 1.2m centres or 25,000mm²/m at 480mm centres.
  • Spring clip fixing suitable for soffit boards 5 - 20mm thick.
  • Hole size: 270 x 92mm (template supplied)
  • Can be used with all common soffit board materials
  • Cutting template provided
  • Quick and easy to install, no special tools required
  • Prevent large insect ingress
  • Independent of rafter spacing
  • Suitable for new roofs and refurbishment
  • Colours to match stained or painted soffit boards

For the Home Owner

  • Ventilation requirements met
  • Standard product installation for roofers

For the Roofer

  • Standard products
  • Products have been designed with the roofer in mind
  • Cutting template provided

For the Architect / Professional

  • Ensure roof ventilation requirements are met
  • Using products that are proven to work
  • Standard product installation
  • Suitable for new build or refurbishment

Discuss your project needs with us today

We are on hand to assist you with any queries you may have on the best options for your project. Alternatively, if you know what you are looking for from our range and need to locate you nearest supplier, use our stockist finder feature below.
